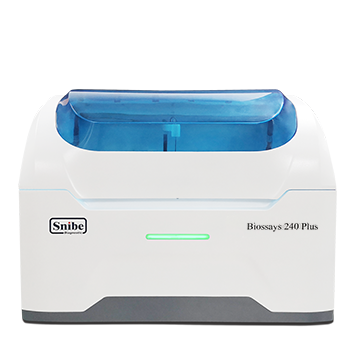

Biossays 240 Plus
Biossays™ 240 plus is a compact design analyzer which aims to meet the needs of space and cost-efficient. It offers a throughput of 240 tests per hour.
CHARACTERISTICS
| Operation | Automatic |
| Applications | For clinical diagnostic |
| Configuration | Benchtop |
| Technology | Random access |
| Options | Barcode reader |
DESCRIPTION
Feature：
● Throughput: Constant 240 tests/hour
● 24 hours ready to use
Specification Sample Module：
● Up to 90 sample positions can be loaded continuously on the sample disk with barcode recognition.
● Micropipette technology, sample volume per test can be reduced to 2.0 μL.
● Batch, Random access, STAT channel available.
Reagent Handing：
● Reagent disk has up to 90 reagent positions, temperature 2℃-12℃, with reagent barcode reader.
● Reagent inventory real-time detection, display the remaining number of tests.
● Automatic reagent replace function, applied to examination system for mass inspection.
Photometry System：
● Holographic concavity flat field grating, rear spectroscopy technology.
● Wavelength range: 340-800 nm, simultaneously on the 16 wavelengths for detection.
● Stable optical path detection system, wide absorbance linear range, high-resolution ratio.
Constant Temperature System：
● 80 reaction cups totally.
● Constant temperature by solid phase system, makes temperature stable.
● Real-time temperature monitoring, displaying, and alerting function.
Operating System：
● Full monitoring, flexibility, convenience, touch screen.
● LIS interface, via ethernet, bidirectional communication.
